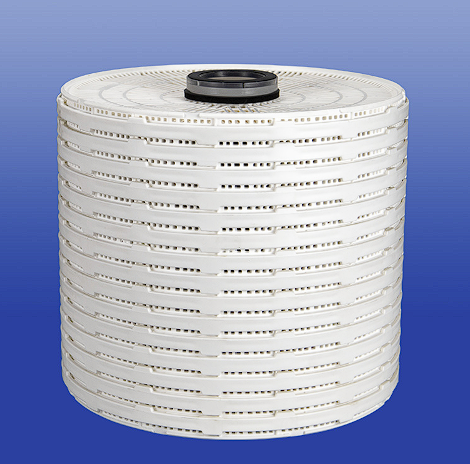

PureDisc™ BDS2 Backflushable Filter Modules
PureDisc™ BDS2 Series Backflushable Filter Modules are new products and are designed for repeated backflush applications. The external diversion of the BDS2 has the function of distributing the fluid to each filter plate.
PureDisc™ BDS2 Series Backflushable Filter Modules are new products and are designed for repeated backflush applications. The external diversion of the BDS2 has the function of distributing the fluid to each filter plate. The BDS2 series modules can be backflushed either with water or product to remove contaminants and prolong their life. BDS2 series modules feature high filtrate quality with higher capacity, reliability, operational advantages, and robustness to meet customer demands and requirements for high-performance products.
Polishing and clarification of beer, liquor, distilled spirits, wine, fruit wine, juices, sweeteners, and syrups, etc.
Clarification of active pharmaceutical ingredients, blood products, vaccines, etc.
Features a proprietary unique design of a backflush set and backflushing is now possible
Strong construction to resist vacuum or back pressure
Meet the complex composition of the fluid filtration with a higher yield
No effect of hot water washing or sterilisation in-place
Protection for back-end sterile filtration
Easy to operate and suitable for most module filter housings
Manufactured in a clean room environment.
Manufactured according to ISO9001:2015 certified quality management system.
All component materials meet the requirements of the EU framework regulation [1935/2004/EC] regarding materials and articles intended to contact food.
All component materials meet the FDA Indirect Food Additive requirements cited in 21 CFR 177-182.
